Descripition：

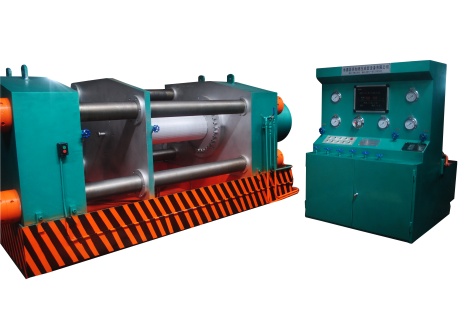

 Hydraulic Valve Test Bench

 Model：

 DYFJ-E

 Testing Range：

 DN15-1200

 Testing Medium：

 Water,Gas or Oil



1. Summary

The hydraulic valve test benches of model DYFJ-E series are particularly designed to test welded end valves.The test benches equipped with special sealing plates and leak detection assembly can perform shell test and seat test on welded end valves. Besides, they can also be used to test flanged end valves, socket welded end valves, screwed end valves etc. As to test  high or super high pressure valves,the test bench can be particularly designed and manufactured according to customers′ special requirements .“ Touch screen  “ intelligent   control system and printer system is optional ; Safety door device is optional .

2. Technical Parameters.

3.Pressure Check List
Model : DYFJ-E100

Model : DYFJ-E200

Model : DYFJ-E300

Model : DYFJ-E400

Model : DYFJ-E500

Model : DYFJ-E600

Model : DYFJ-E800

Model : DYFJ-E1000

PN-denote the pressure of the oli cylinder when performing seat test ; PS – denotes the pressure of the oil cylinder when performing shell test .
